Update your roller shutter switch to smart device!
Note before Order!
This device can't work with DC motor!
Input Voltage: 100-250VAC, 50/60Hz
Output Volate: 100-250VAC, 50/60Hz
Please check your motor is with 4 wires (Blue Wire, Brown Wire, Black Wire, Green/Yellow Wire) before you buy this product.

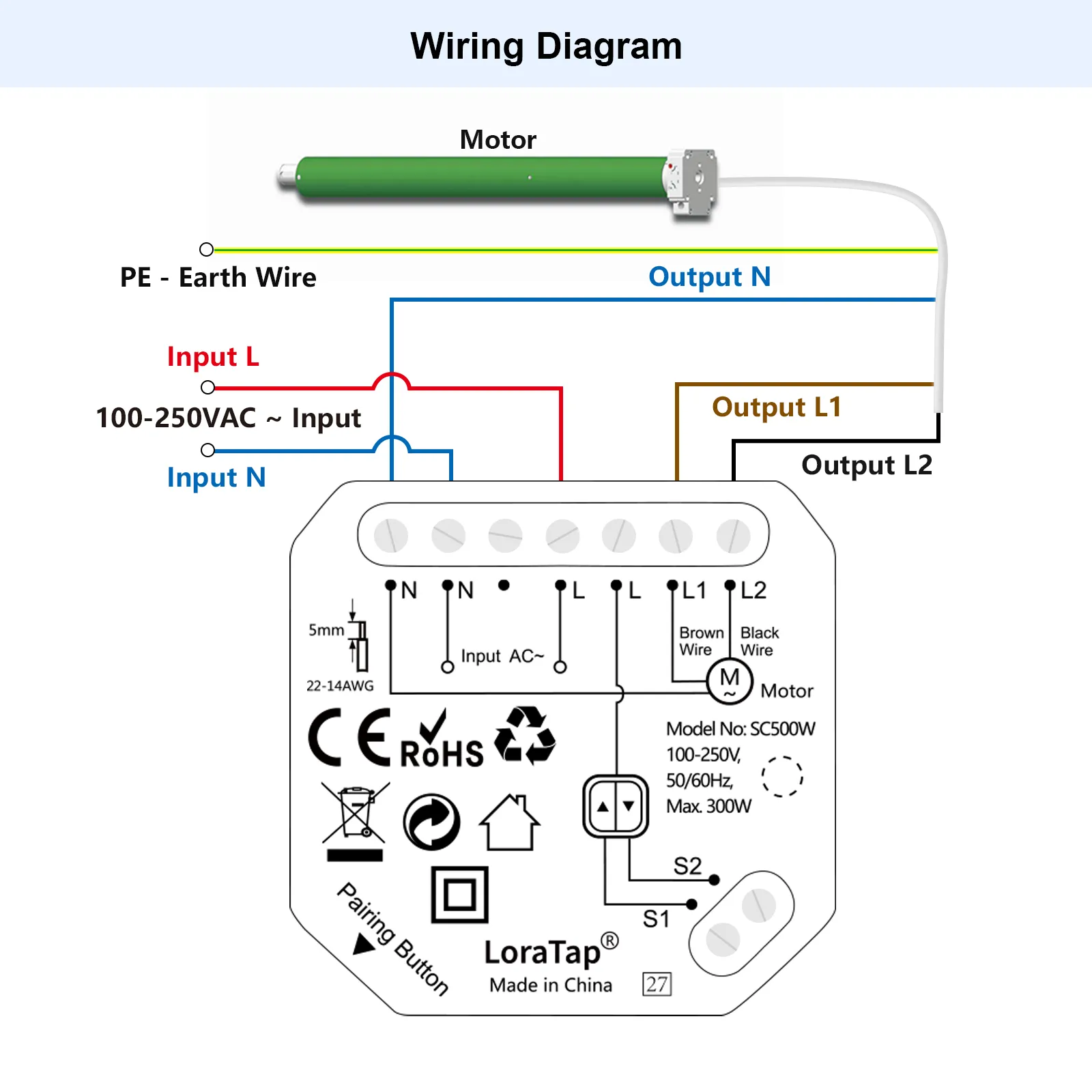

Wiring Diagram( without Wall Switch)
If you don't have a manual switch, please refer to below wiring connection diagram. (You don't have to have a wall switch, this device still can work without a wall switch)

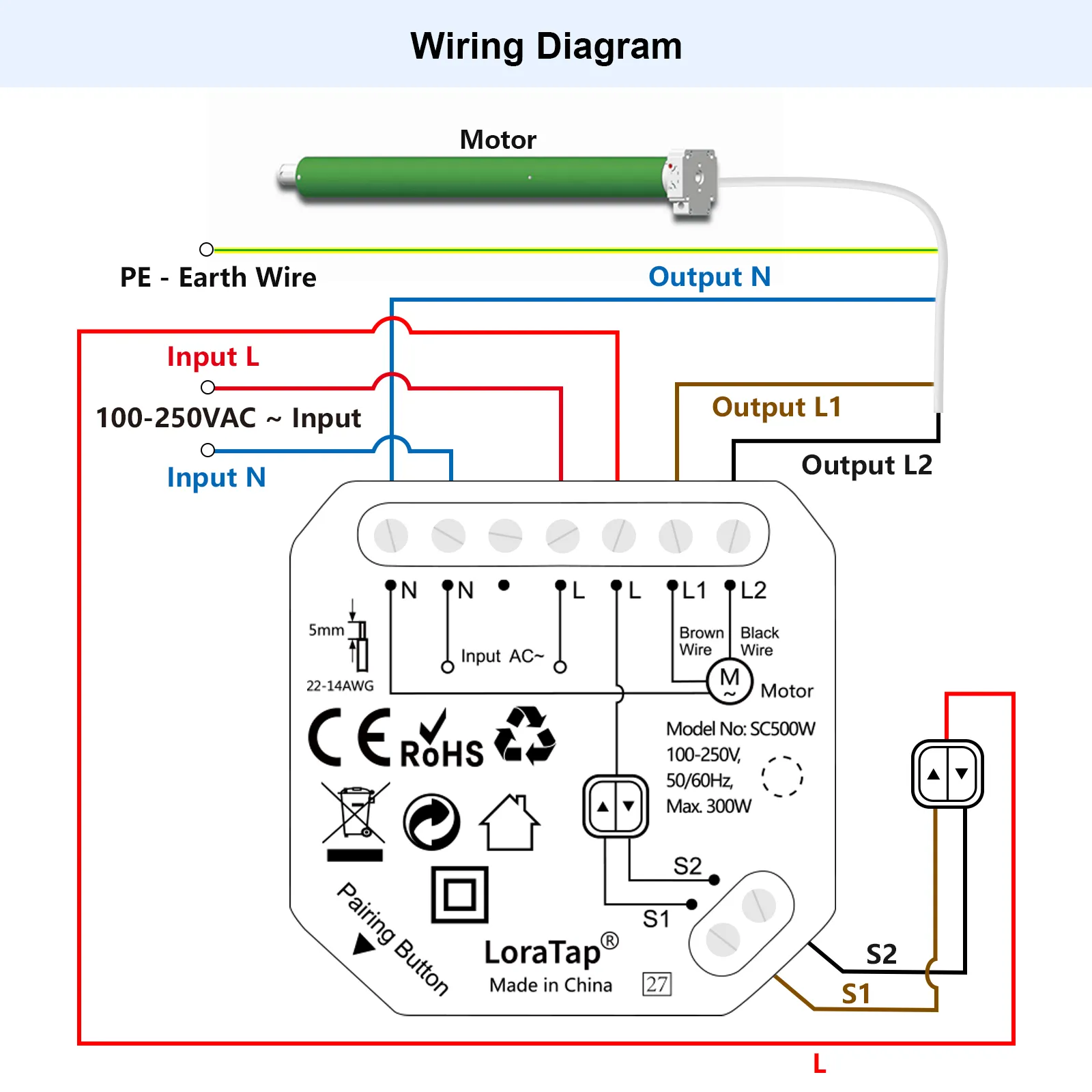

Wiring Diagram( Connect to Wall Switch)
Please wire the module as below if you have a wall switch.
Application
Specification
Input Voltage: 100-250VAC, 50 /60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300 W
Wi-Fi Standard: 2.4 GHz 802.11 b / g / n (Not support 5Ghz Wi-Fi)
Standby Consumption: below 0.5W
Dimensions: 48mm * 47mm * 22mm
APP Name: Smart Life, or Tuya APP
What's in the Box?
We have all the accessories you need in the box, you don't need to pay extra cost.
